MechMaxx

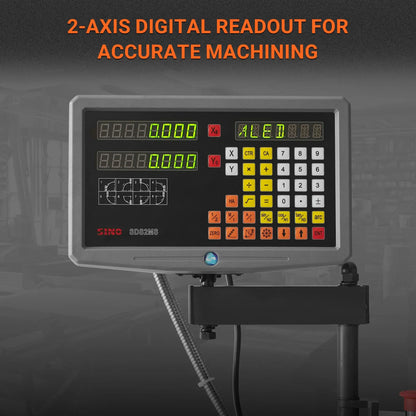

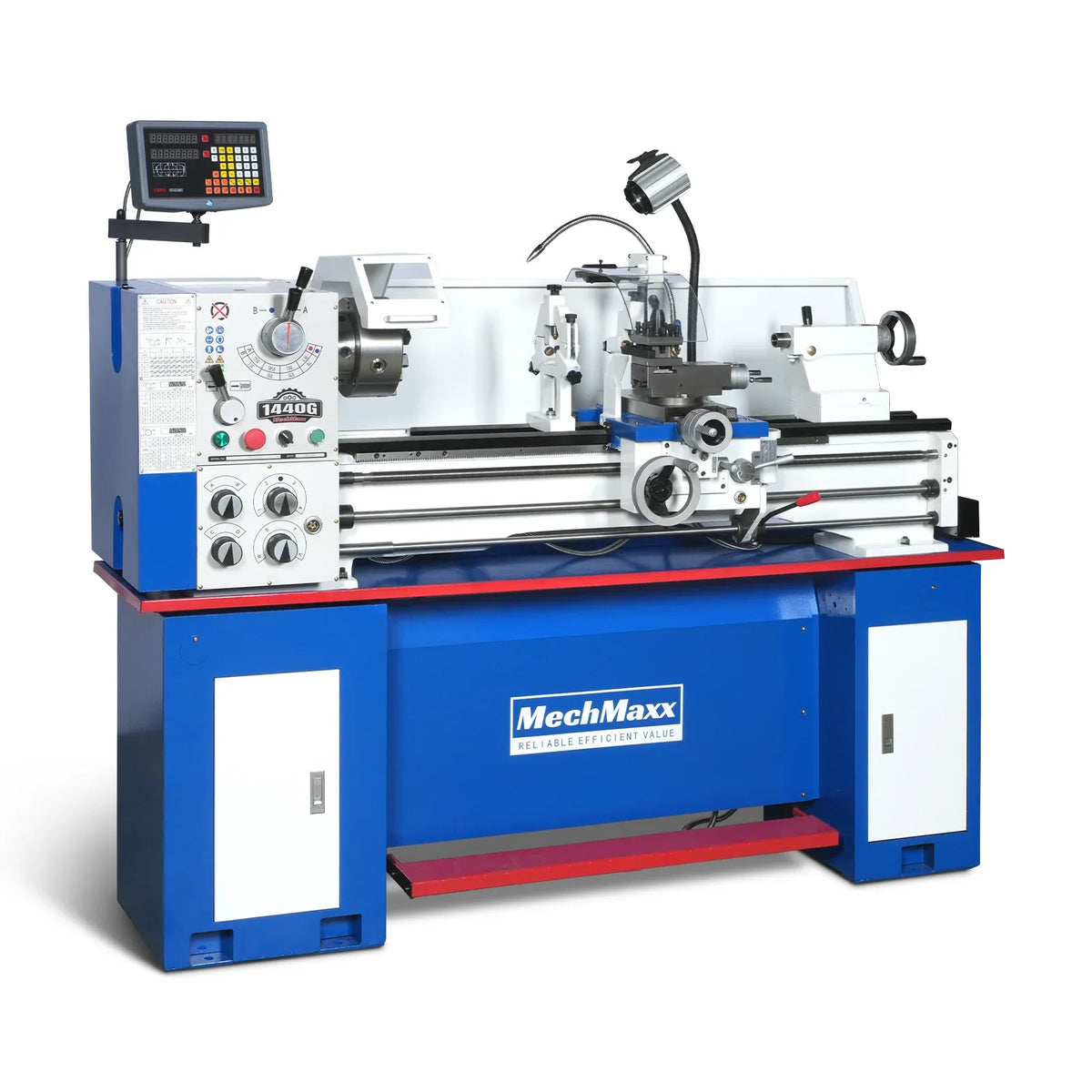

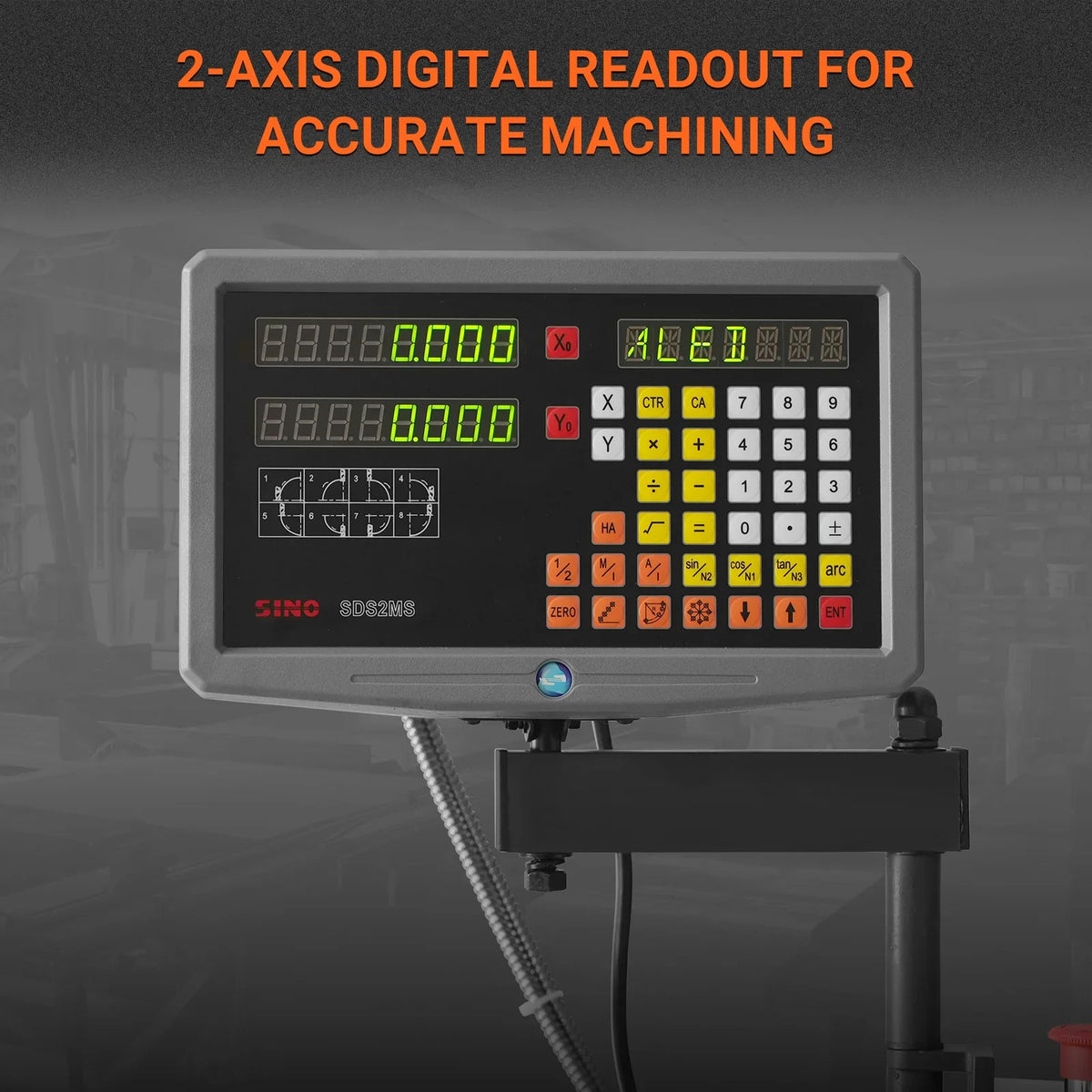

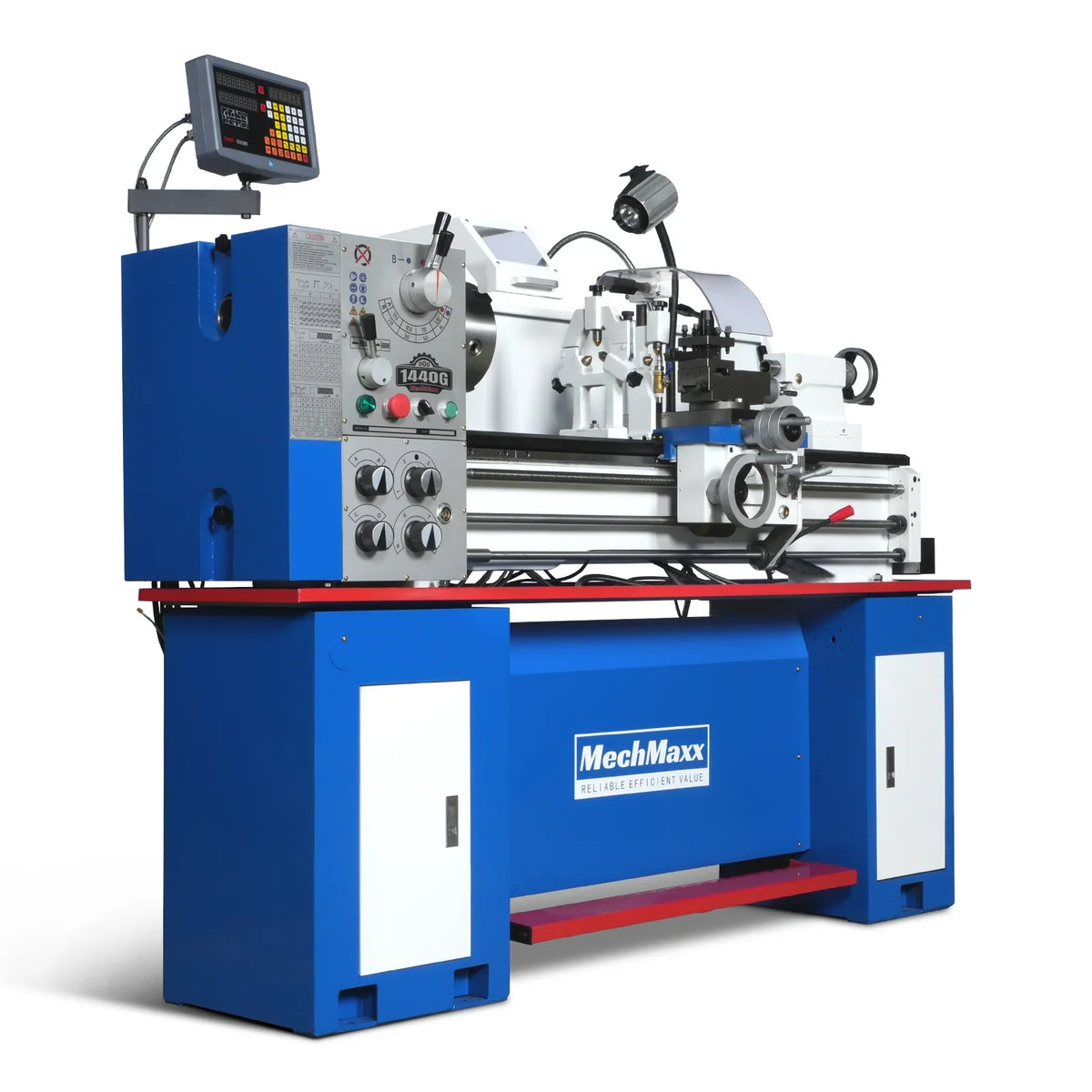

Industrial Metal Lathe Machine with DRO 14' x 40'' High Precision 84-1850 RPM Variable Speed Metal Working Machine 2HP Small Lathe with Stand 1440G

Industrial Metal Lathe Machine with DRO 14' x 40'' High Precision 84-1850 RPM Variable Speed Metal Working Machine 2HP Small Lathe with Stand 1440G

Regular price $7,399.00
Regular price $7,699.00 Sale price $7,399.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
Motor 2HP(1500W) 220V 60HZ 1PHASE
Swing Over Bed 14''(355mm)
Swing Over Cross Slide 8-5/8"(220mm)
Swing Over Gap 19-5/8"(500mm)
Distance Between Centers 39-3/8"(1000mm)

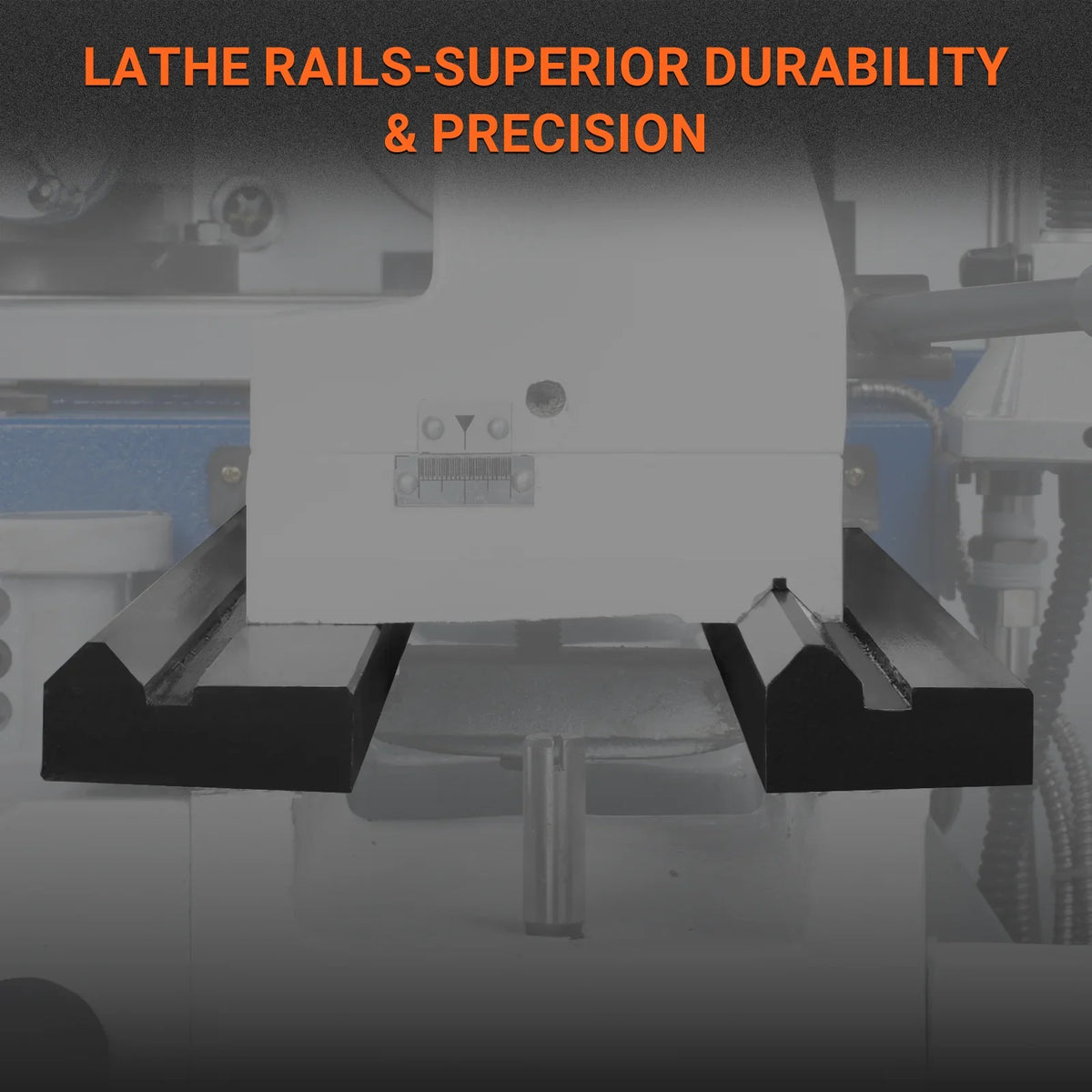

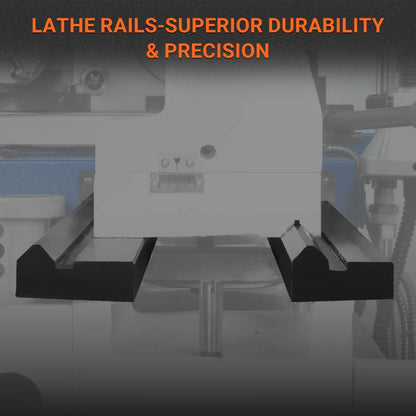

Bed Width 7-7/16"(187mm)
Spindle Bore 2''(51mm)
Spindle Mount Cam-lock Chuck
Spindle Type D1-5
Spindle Taper MT6
Tailstock Taper MT3

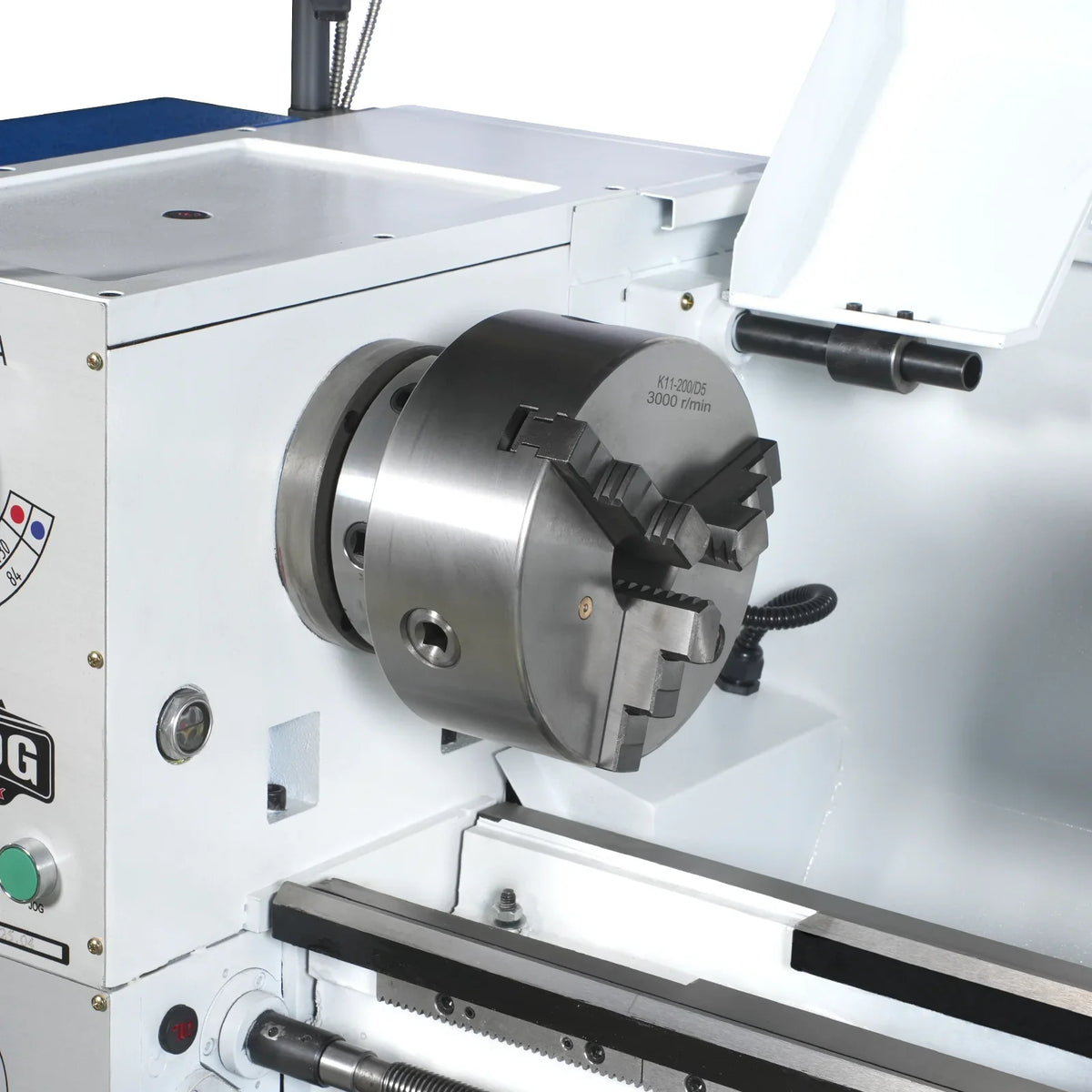

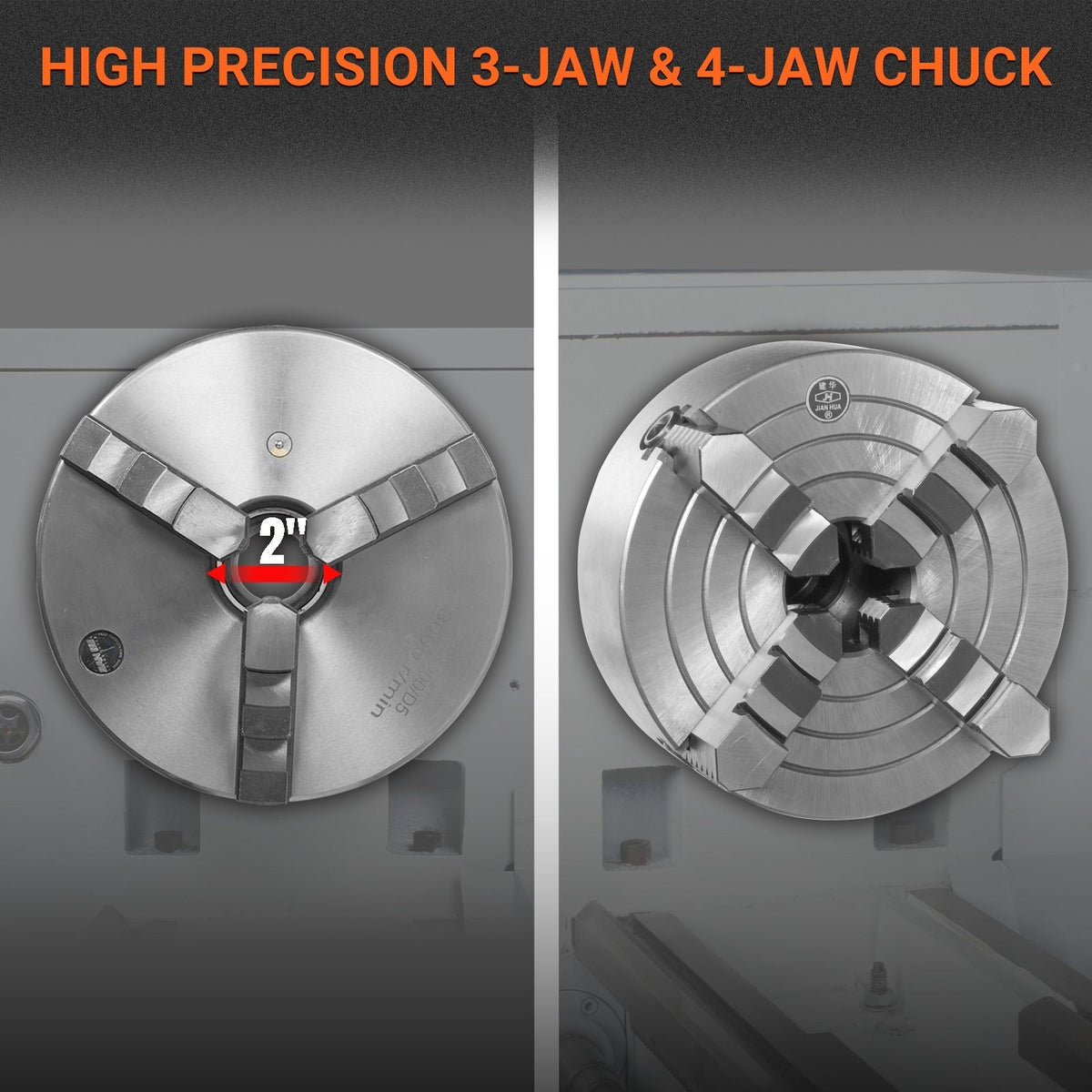

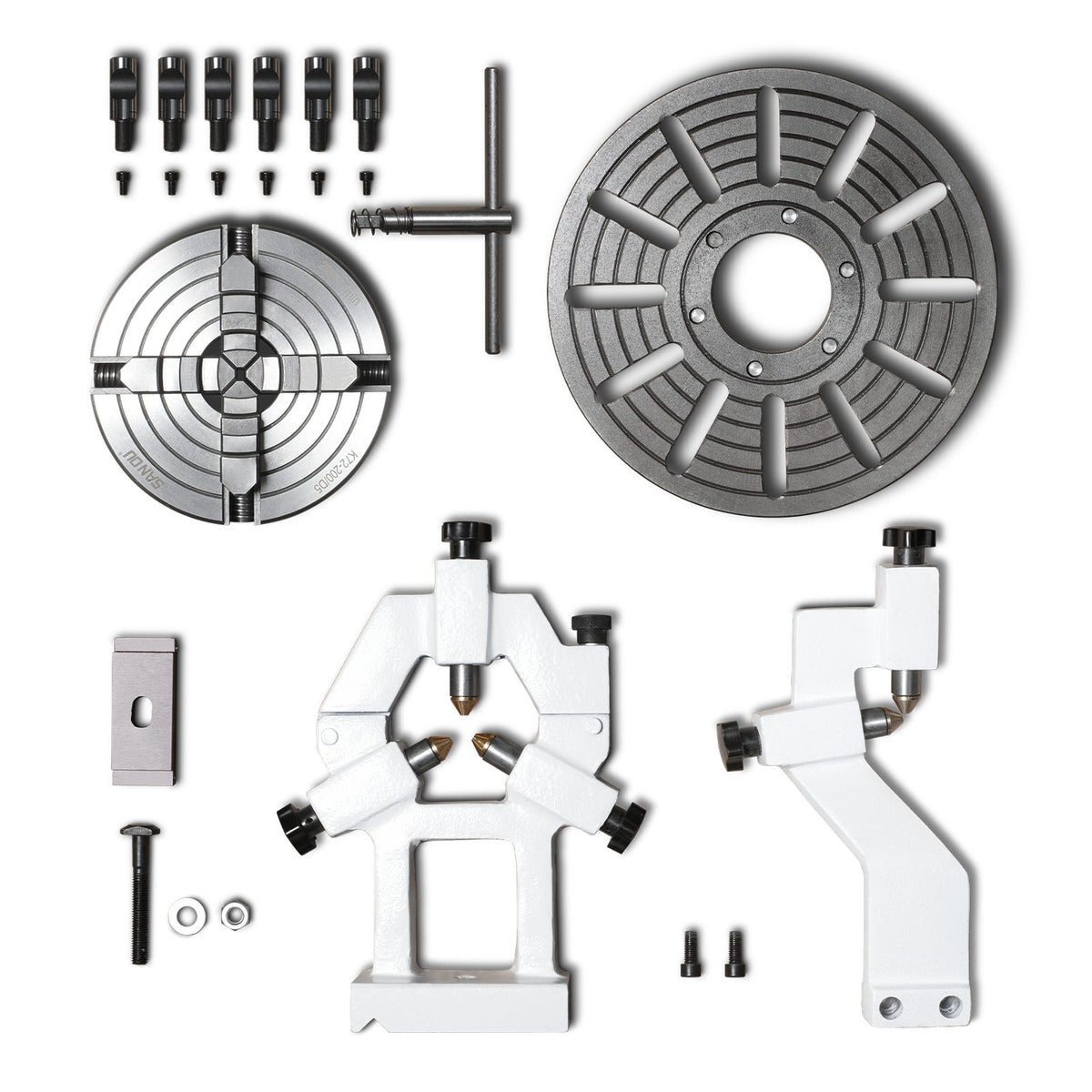

Chuck Size 6" 3-Jaw and 8" 4-Jaw (2" Chuck Bore on both)

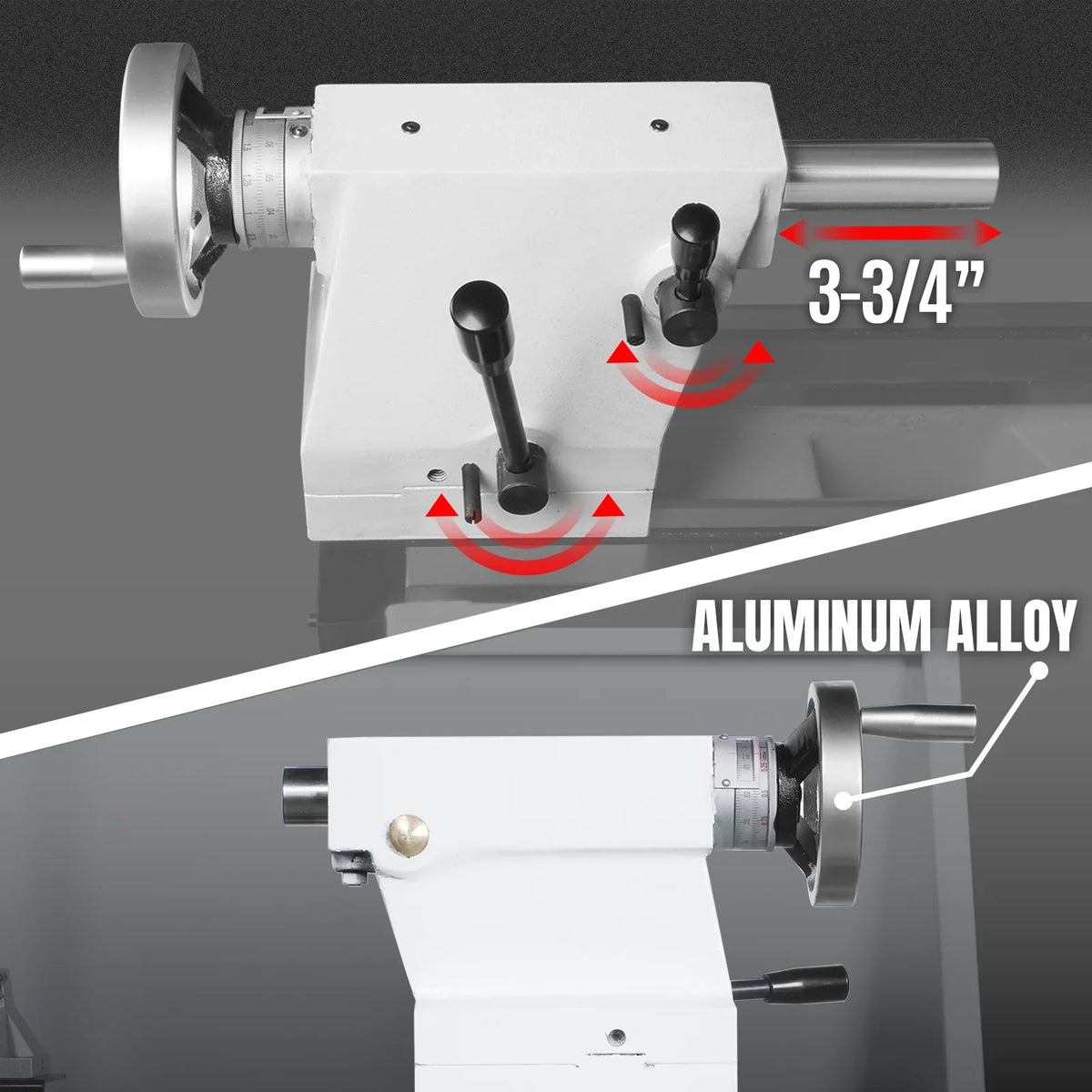

Tailstock Quill Travel 3-3/4"(95mm)

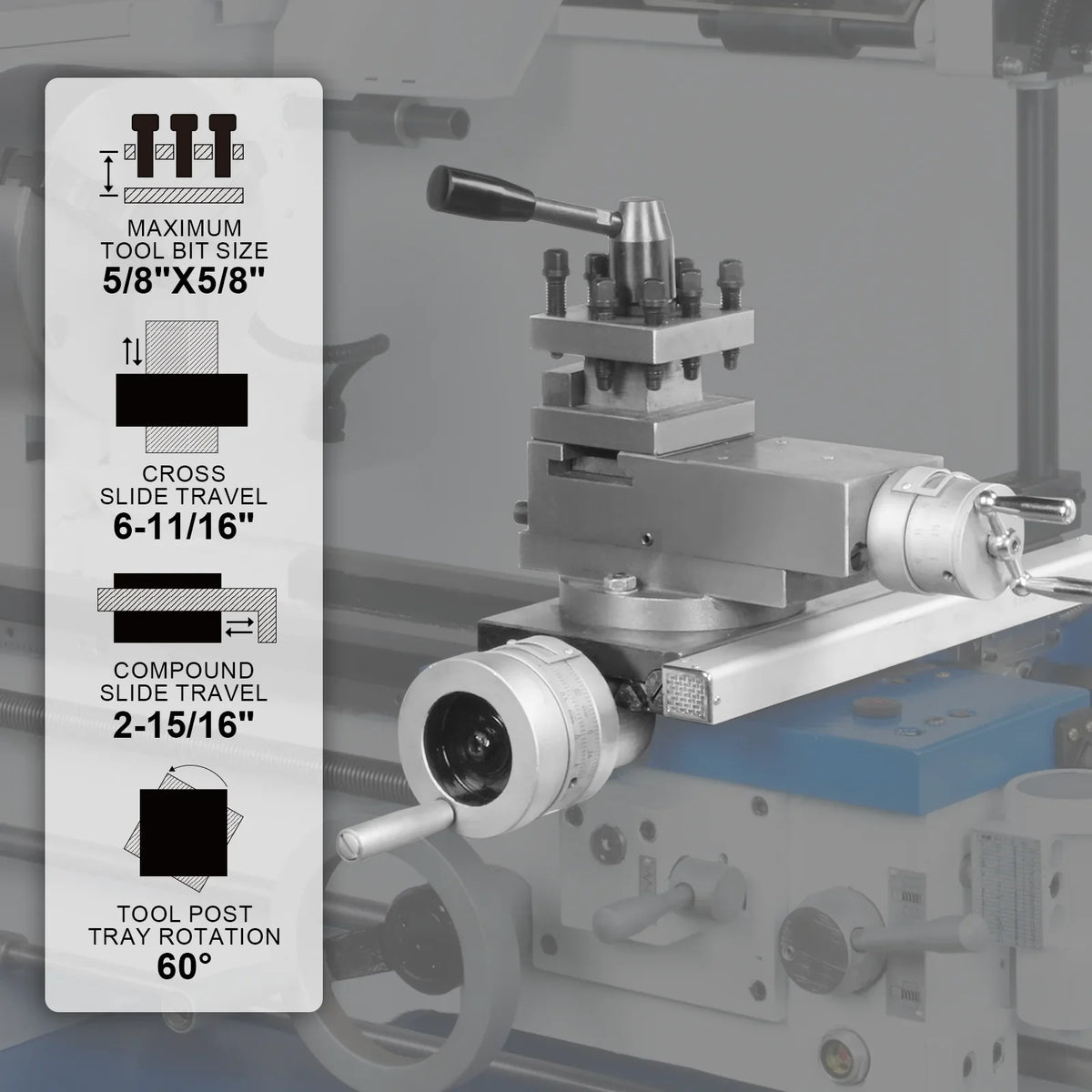

Cross Slide Travel 6-11/16"(170mm)
Compound Slide Travel 2-15/16"(74mm)
Carriage Travel  40''(1000mm)
Spindle Speeds 84, 140, 230, 360, 430, 700, 1150, 1850RPM
Number of Speed Ranges 8

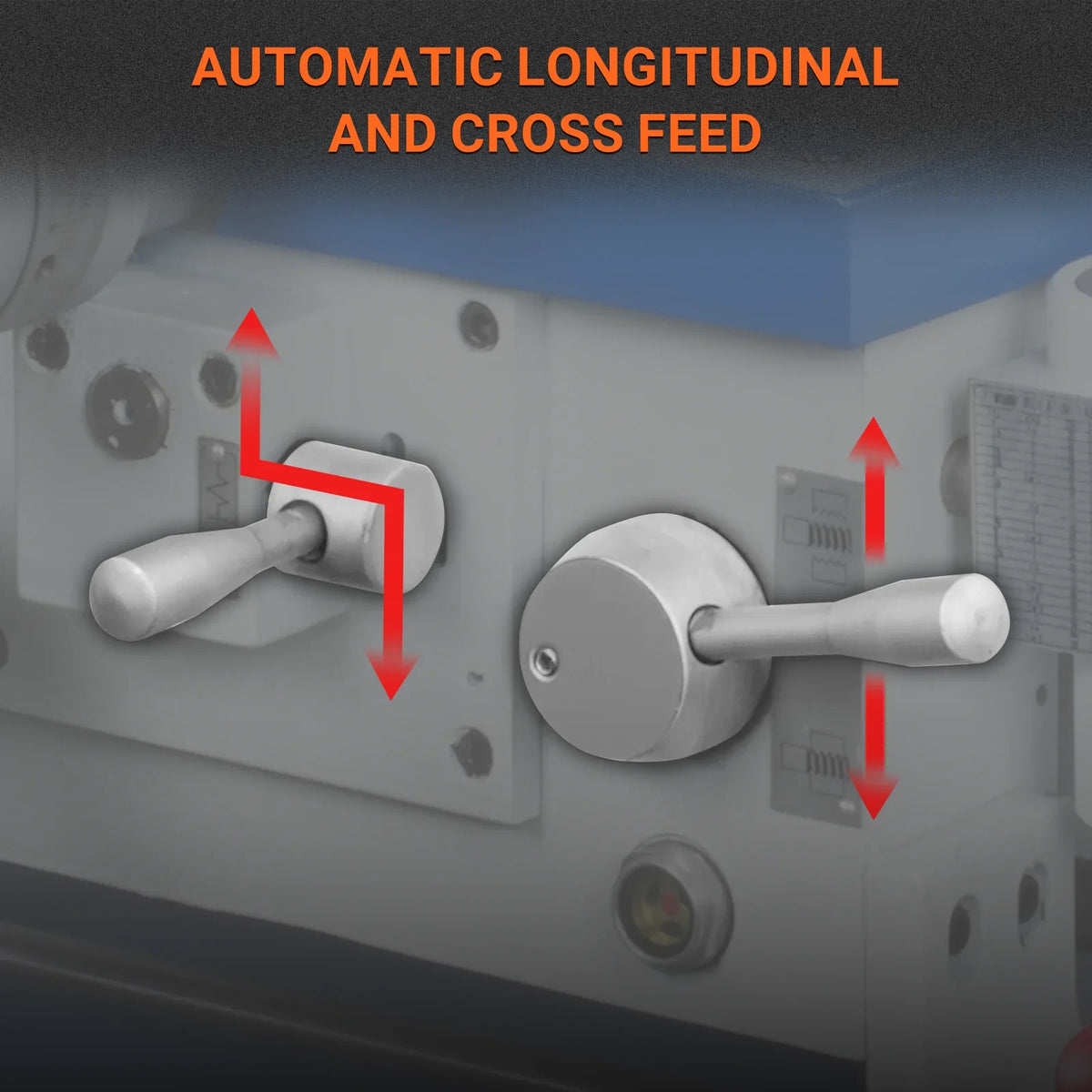

Longitudinal Feeds 0.002''-0.0548''
Transverse Feed Rate 0.00055''-0.015''
Leadscrew Size & Pitch 7/8'' (22mm) 8TPI
Threading Capacity - Inch 4-56TPI(34 kinds)
Threading Capacity - Metric 0.4-7mm(26 kinds)
Module thread 0.35-5M.P(16 kinds)
Diametral thread 6-104D.P(36 kinds)
Maximum Tool Bit Size 5/8"x5/8"(16X16mm)

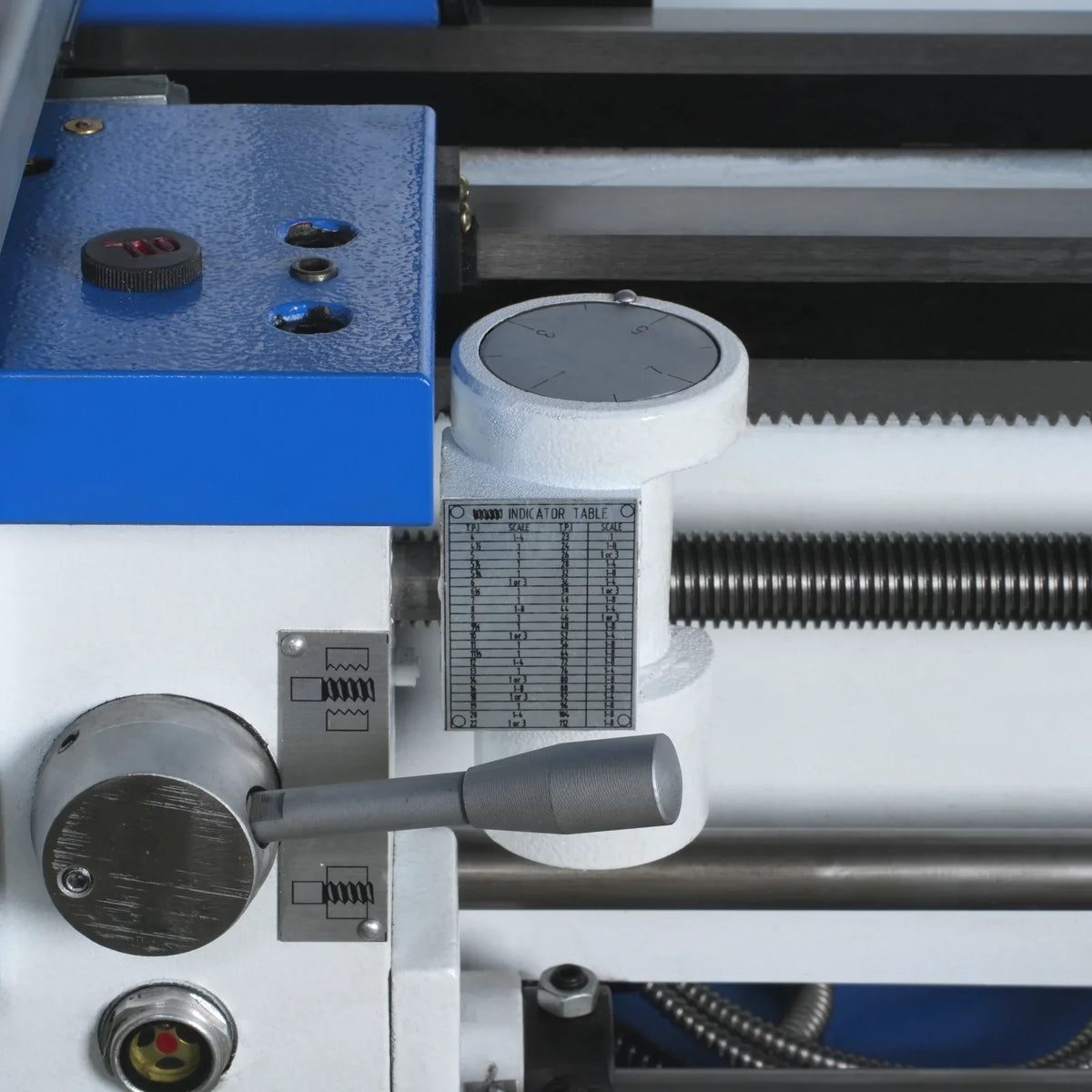

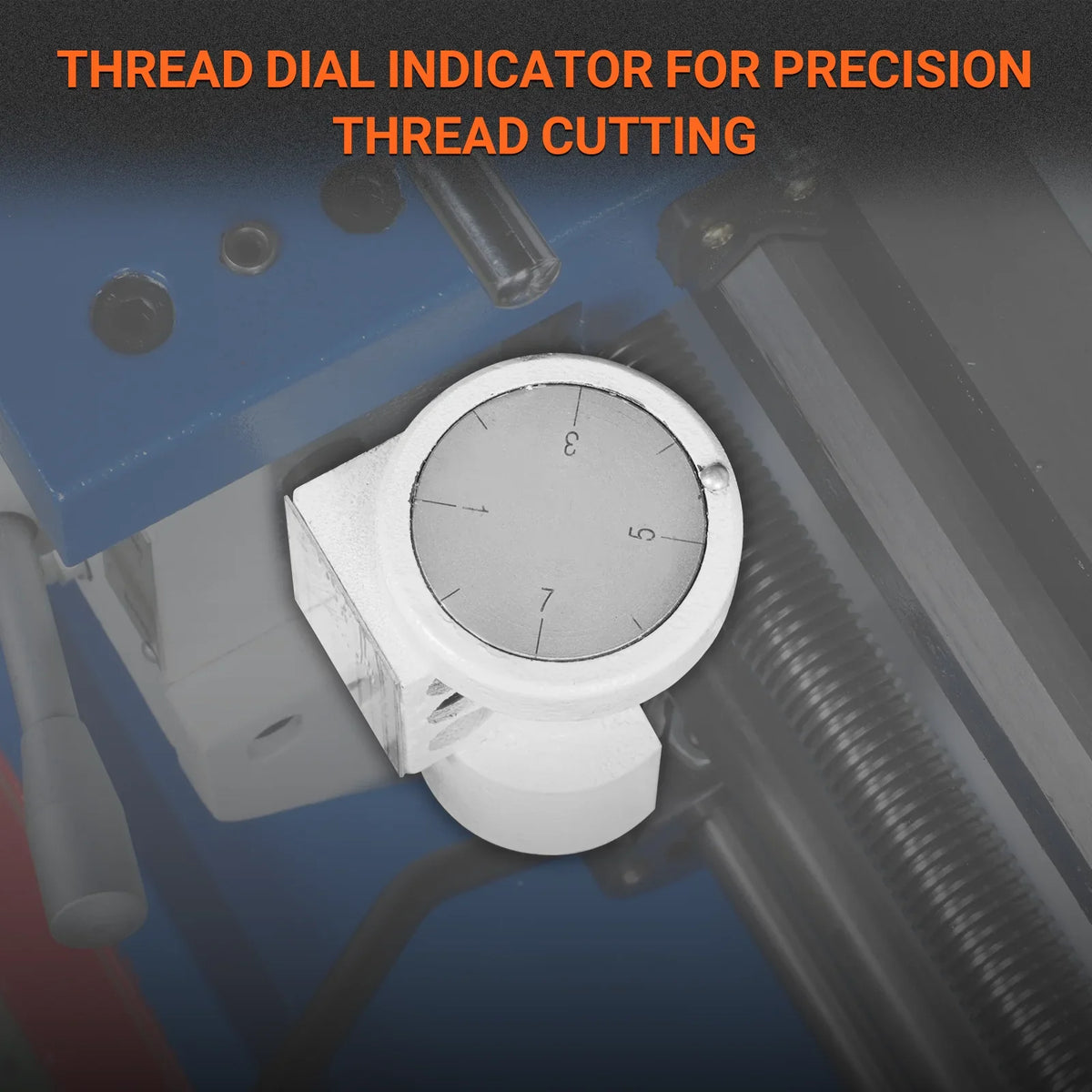

Thread Dial Indicator YES

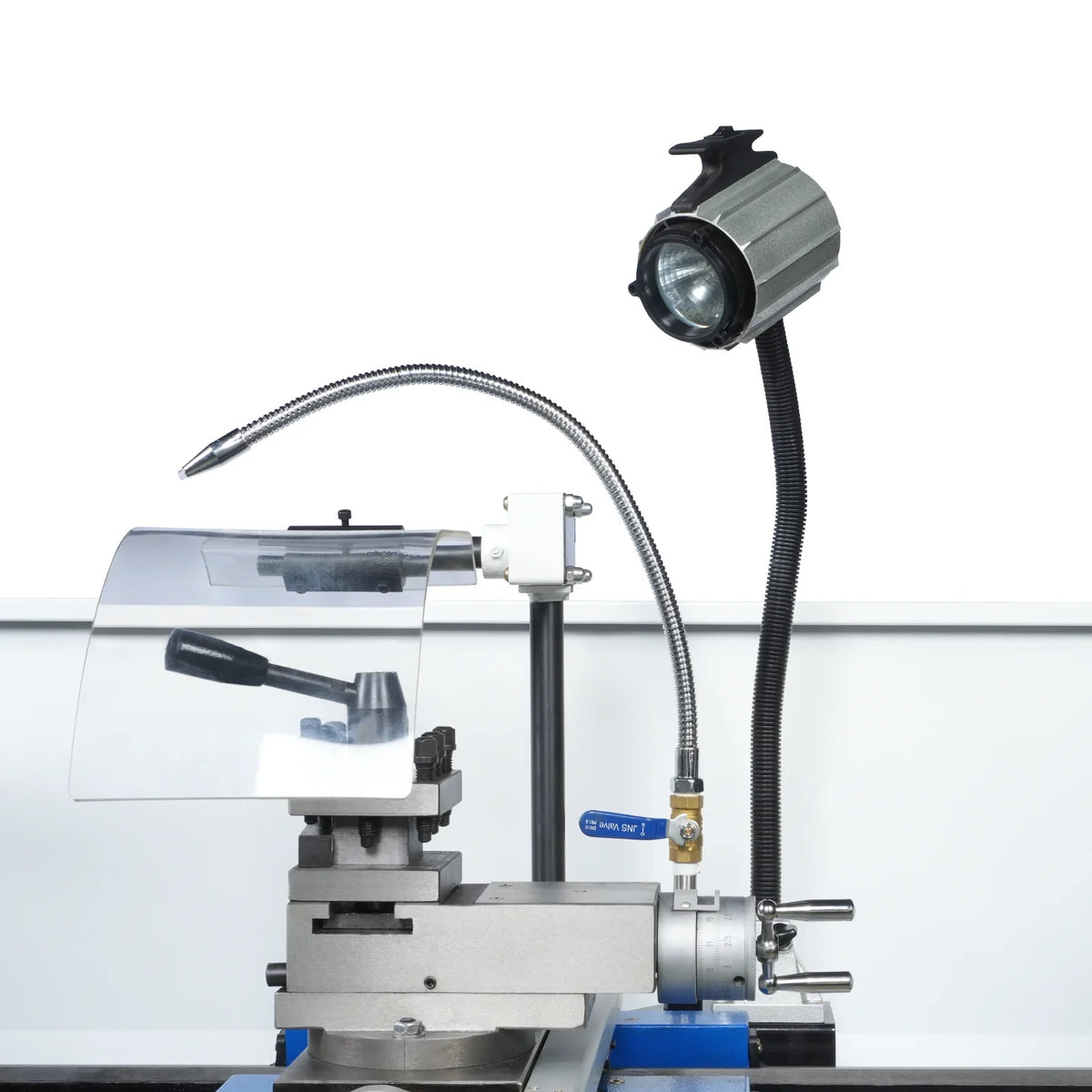

Coolant System YES
Overall Dimensions 76''x30''x59''(1920x750x1500mm)
Approximate Shipping Weight 1378/1486lb(625/754kg)

WARNING: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soot, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
